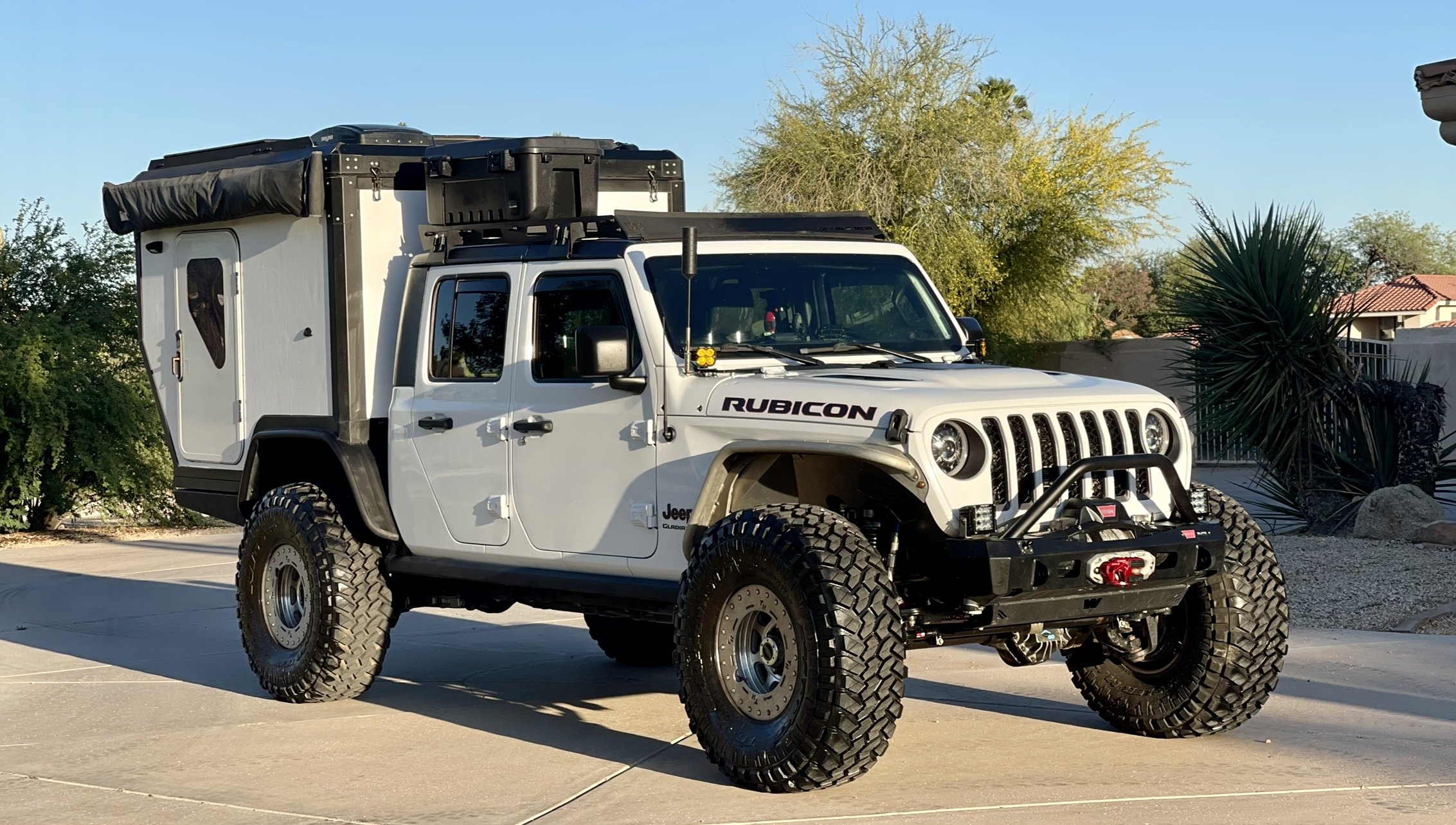

One of a Kind 2020 Jeep Gladiator Expedition Vehicle
FOR SALE: $125,000
64,989 miles
12 MPG
21 gallons of water
370 watts of solar
200ah Lithium
One of one custom built bison overland FRP composite camper
36 total gallons of fuel - approximately 550 mile range
Dana Spicer Ultimate 60 axles with RAM 3500 brakes, 5.38 gears and 40” tires
this Jeep Gladiator Rubicon was purchased Brand New in January of 2020. It took 3 years to get it where it is today, as a fully livable, 100% off the grid home on wheels. This vehicle has had no expense spared, and has been constructed using the highest quality materials. From Dana Spicer axles and Warn winches, to highly durable FRP composite camper walls and custom aluminum frame construction, this vehicle was built to be as lightweight and capable as possible. Scroll down for a full parts list!
TRUCK MODIFICATIONS
Base price Gladiator Rubicon: $61,459
Bison Overland Camper with Tern Overland windows/door: $50,000
Dana Spicer Ultimate 60 Crate Axles and Driveshafts: $22,123
Icon Stage 8 suspension, price not including custom valving/tuning: $6,595
Icon Front Hydro Bumps: $854
Steer smarts Tie rod, drag link and track bar: $2284
Nichols Autofab Custom Rear bumper built from 3/16” steel: $1,300
Nichols Autofab Custom Rear steel frame to fit 40” spare: $3,980
Long Range America Fuel Tank: $2245
Cutting and Modifying of LRA fuel tank to clear UD60 driveshafts: $500
Genright Front and Rear Aluminum fenders and Inner fenders: $2267
Invictus Offroad FULL Interior Molle Panel Set Front and Rear: $1,250
EVO front lower adjustable control arms: $515

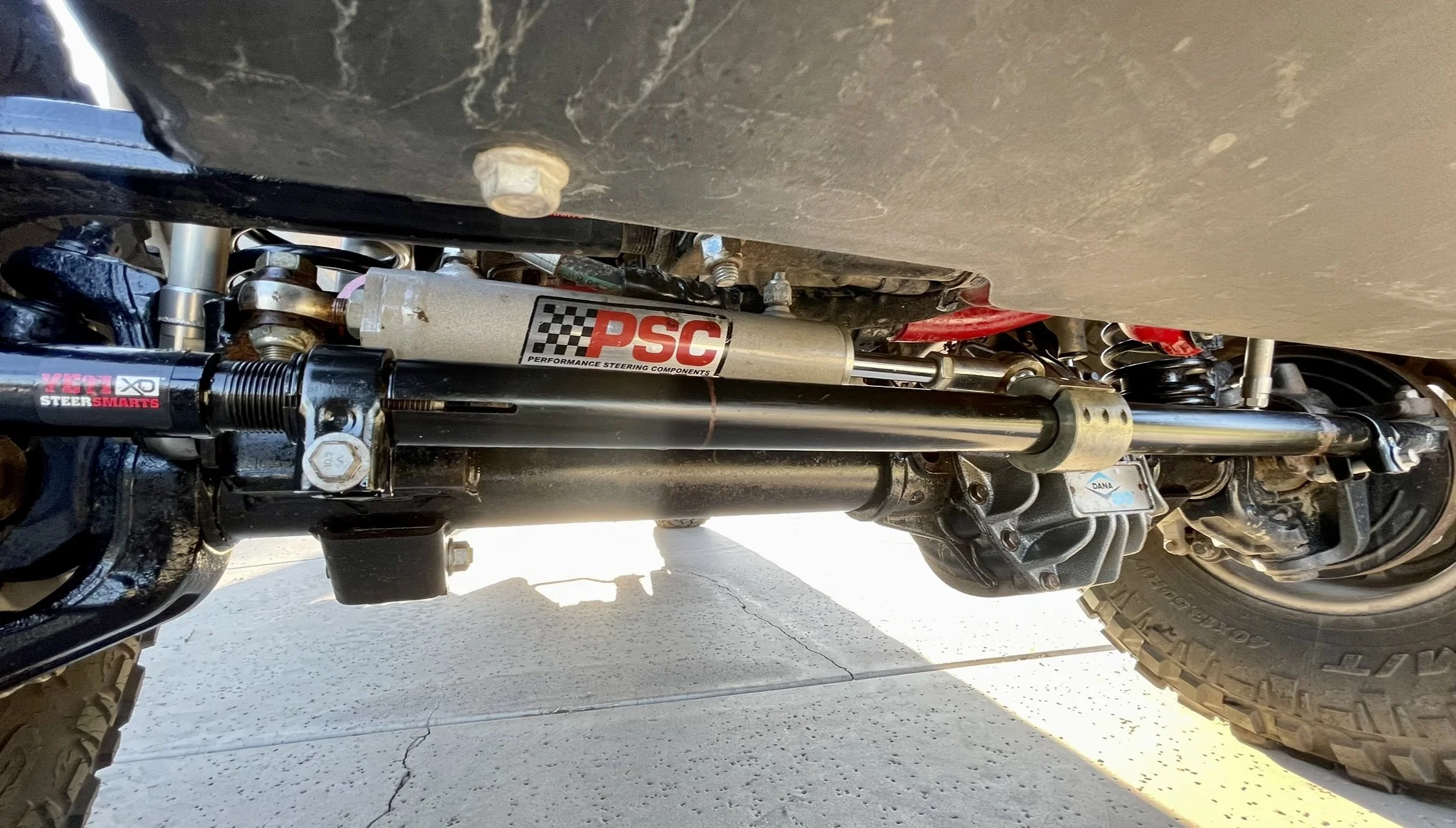

PSC hydraulic assist steering conversion: $3,023
Warn Zeon 12-S: $1,689
Warn Elite front Bumper: $989

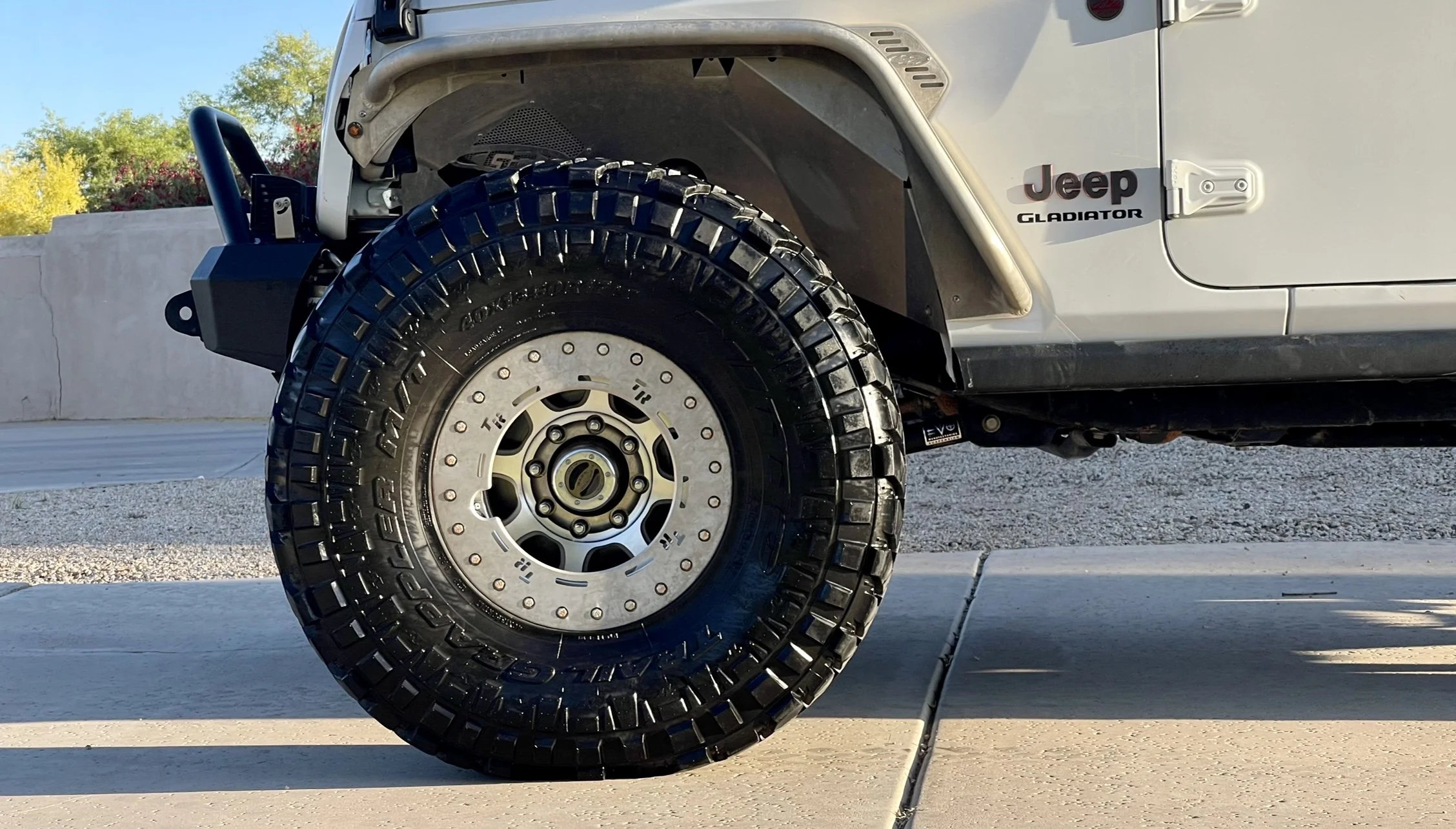

5x Nitto 40"x17x13.50: $2,790
5x Trail Ready 17" Beadlocks with Rock Ring: $5,111
Hellwig Rear Sway bar: $549
Magnaflow Rock Crawler Exhaust: $673
BRAND NEW Factor 55 Ultra hook: $280
Hothead headliner insulation: $379
Expedition Essentials Dash mount: $330
Carolina Metal Masters interior 20mm ball mounts: $142
Goose gear seat delete: $1320
S&B Cold Air Intake with filter: $409
One of a Kind Pakrax/Down2Mob Roof Rack: $950
Plano Roof storage box: $45
Apex Products Auto lynx sway bar endlinks: $450
Apex Products RPV XL rapid air down valves: $175
Windshield Defense Kit by Racing Optics: $229
THE CAMPER & SYSTEMS
The camper build started by widening the stock steel frame to house the 40” spare tire. A custom aluminum flat bed was built using 2” square tube, and A 2,000lb. warn winch was installed using pulleys and line running through the aluminum frame to raise and lower the spare. The aluminum frame is based around the rear genright fenders, and was built to get the floor as low as possible. this is the only jeep gladiator with a camper that you can sit, sleep, and be in the camper comfortably with the top down. when the top is popped, it provides 2 extra feet for a total of 6’5”. the pop top is constructed of sunbrella fabric on the inside, with thinsulate insulation in the middle and anti mold vinyl on the outside. The bed sets up in seconds by releasing the yacht style table pedestal quick releases, and pushing the table down. the pads stow under the seat when in table mode, and when in bed mode it makes an almost queen sized bed measuring 56” wide and 76” long, or 6’4”. The bed or table can be left setup while driving, whatever is most convenient for you.
Nichols Autofab Custom Aluminum Frame for camper: $5,873
Ostrich Wing Junior awning with custom Pakrax mounts: $1,250
21 gallon water tank: $129
Aluminum dinette panel, extrusion, wood, interior build cost: $934
Custom cushions: $380
Custom table from Whipsaw woodworks: $250

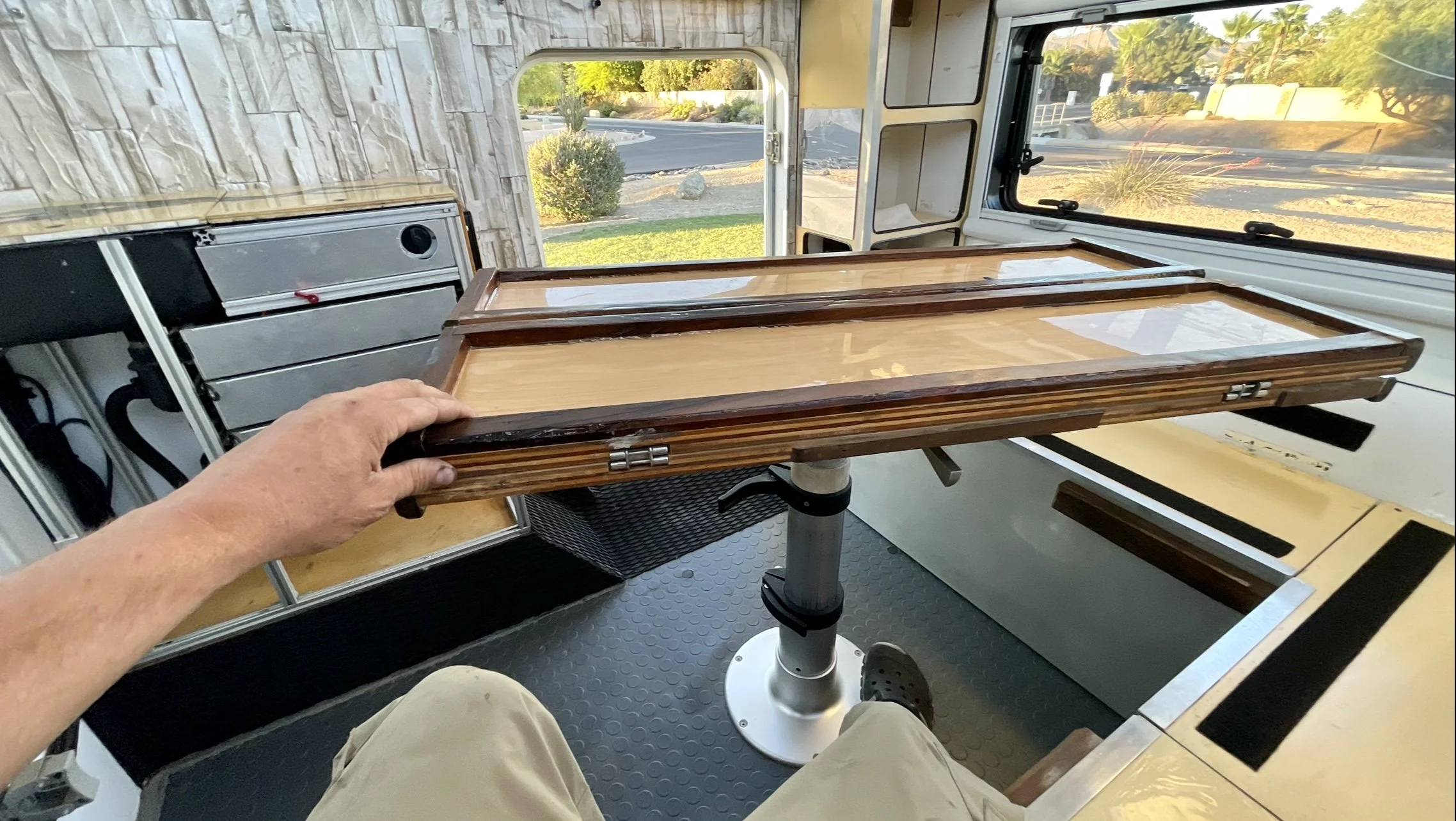

Yacht style table pedestal: $529
Marine seat slide on table pedestal (to slide table away 4”): $119
Custom Flip down Rear aluminum table: $280
Little Giant Stairs: $237
Wrappon Dry Toilet System built into Dinette: $1595
Maxxair Fan Deluxe: $241
THE SOLAR/ELECTRICAL SYSTEM
Redarc Manager 30 with Red Vision: $2650
Dakota Lithium 2x 100ah batteries: $1978
Setpower Dual zone fridge: $439
Zamp Solar Obsidian panels 370 roof, 200 portable: $3627
Cotek 1000w Inverter: $371
Cascadia Vehicle Systems Hood Solar Panel: $663
Auxbeam 8 gang switches: $180
Auxbeam RGB headlights: $489
Baja Designs Squadron Sport, NITTO Pit Crew Limited Edition flood: $260
Rigid D2 XL hyperspot: $629
Rigid Amber Rock lights: $479
Rigid Scene Lights on camper: $375
Trail Tail LED tail lights: $225

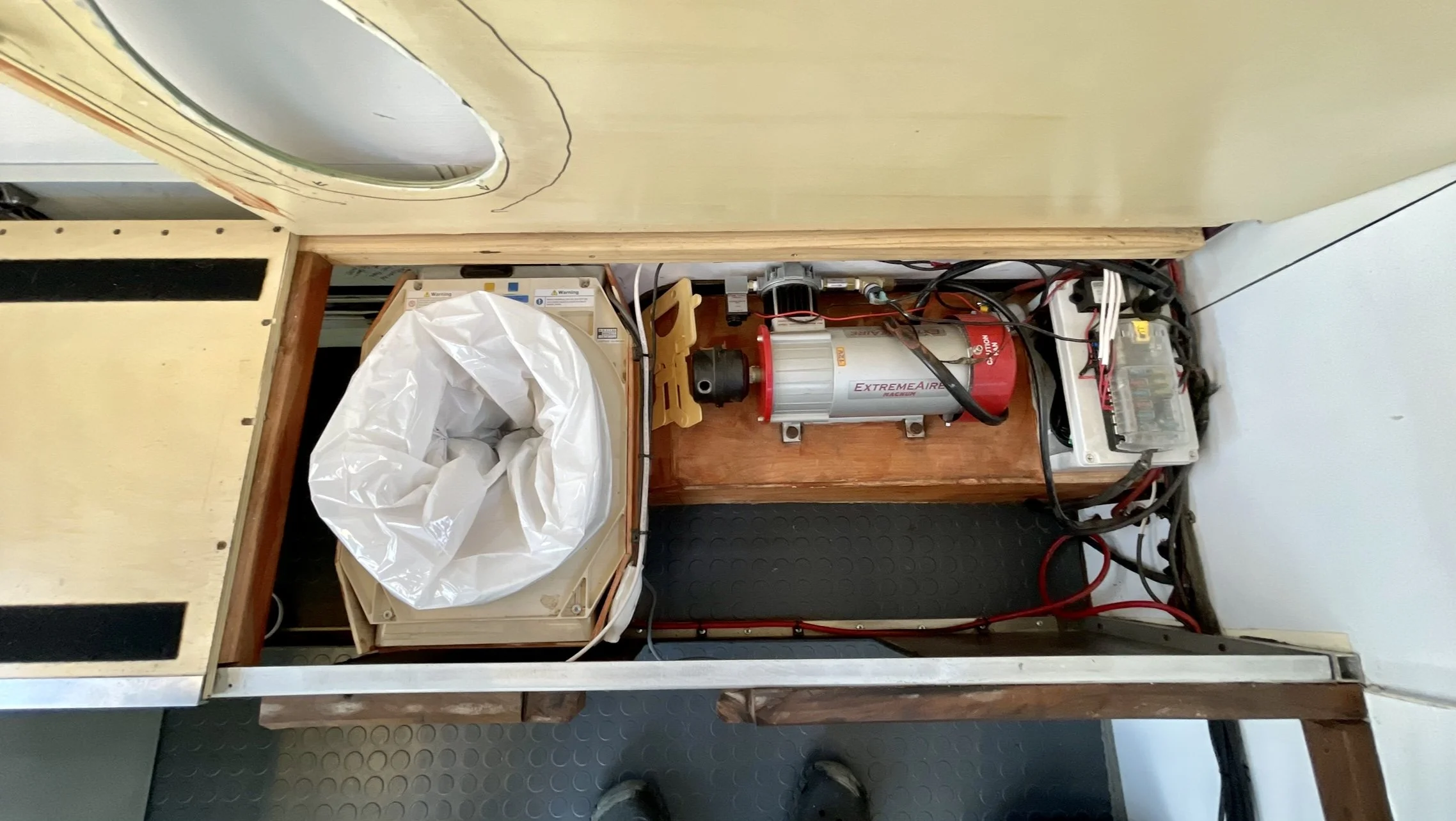

Extreme Outback Magnum Air Compressor: $629
Updown Air 4 tire inflation system: $249
WeBoost Signal Booster: $519
